What is the PCD when referring to a flange?

What is PCD?

Just Valves

Slider

What is the PCD of a flange?

The PCD of a flange is one of the critical dimensions.

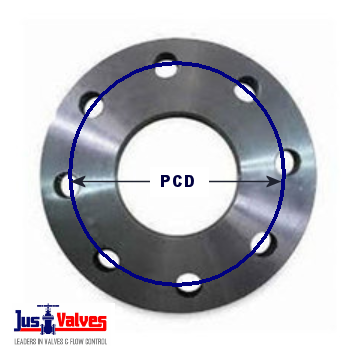

PCD (Pitch Circle Diameter) is the diameter of a circle that goes through each of the bolt holes.

Flange PCD

Please use the table below for your reference and if you have any other questions, please ask the Just Valves team.
