Ball Valves – Plastic

Jv 723

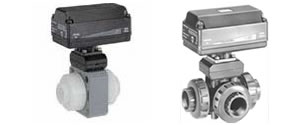

The JV 723 motorized 2/2 or 3/2 way plastic ball valve has a low maintenance electric actuator with a powerful revisable DC motor. The rugged reduction gear in the motor, consisting of a threaded spindle with swivel lever, provides rotation through 90O.

The housing is made of plastic. An optical position indicator and a manual override are integrated as standard.

Features

  • Suitable for inert and corrosive liquid & gaseous media.
  • Insensitive to media with high viscosities.
  • The union body enables the valve to be installed in the pipeline without additional components.

Advantages

  • Adjustable end positions by means of micro switches.
  • Opening & closing behaviour is independent of the working pressure.



Jv 710

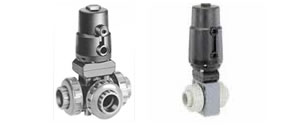

The JV 710 pneumatically operated 2/2 or 3/2 way plastic ball valve has a corrosion resistant all plastic design. The low maintenance plastic piston actuator is available with normally closed & double acting control functions.

Features

  • Suitable for inert and corrosive media.
  • The union body enables the valve to be installed in the pipeline without additional components.

Advantages

  • High flow capability.
  • Low weight.

Jv 717

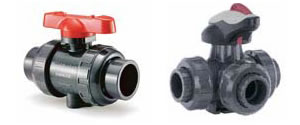

The JV 717 manually operated 2/2 or 3/2 way plastic ball valve has a corrosion resistant all plastic design. Available with NPT / BSP threaded connections or sockets & flanges.

Features

  • Suitable for inert and corrosive media.
  • The union body enables the valve to be installed without additional components.

Advantages

  • High flow capability.
  • Low weight.
